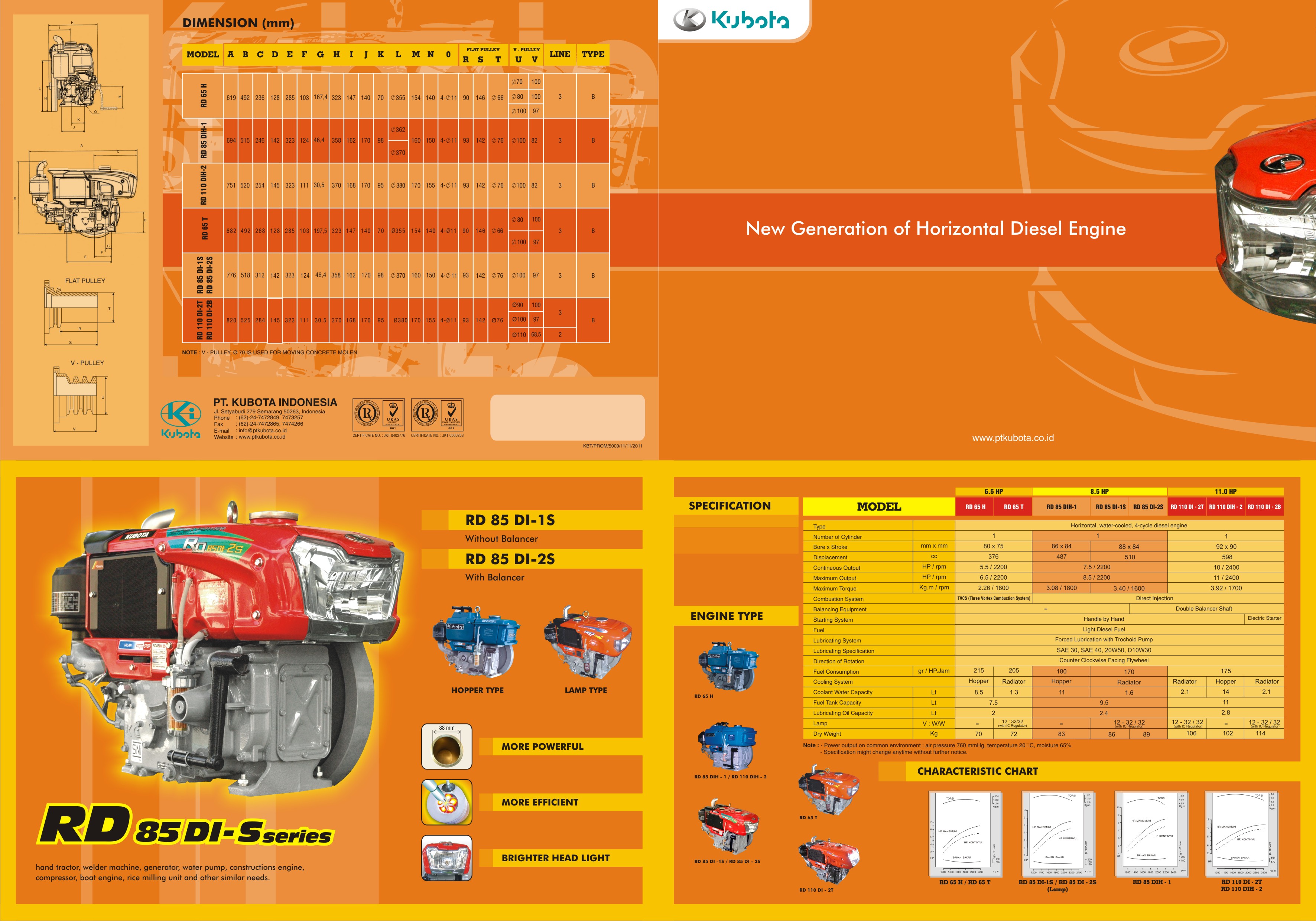

Download Brochure | Download Price List
- Power output on common enviroment : Air pressure 760 mmHg, temperature 20C, moisture 65%.
- Specification might change anytime without further notice.

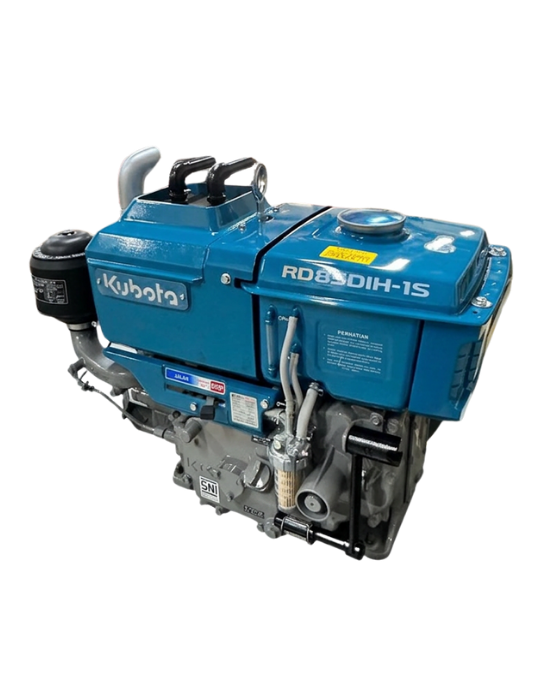

| Name | : RD 85 DIH-1 |
| Type | : Horizontal, Water-cooled, 4-cycled |
| Category | : Diesel Engines |
| Bore x Stroke |
: 86×84 mm x mm |
| Number of Cylinder |
: 1 |
| Continuous Output |
: 7.5/2200 HP/rpm |
| Displacement | : 487 CC |
| Maximum Torque |
: 3.08/1800 Kg.m/rpm |
| Maximum Output |
: 8.5/2200 HP/rpm |
| Balancing Equipment |
: – |
| Combustion System |
: Direct Injection |
| Fuel | : Light Diesel Engine |
| Starting System |
: Handle by Hand |
| Direction of Rotation | : Counter Clockwise Facing Flywheel |
| Lubricating System |
: Forced Lubrication with Trochoid Pump |
| Coolant Water Capacity |
: 11 Lt |
| Fuel Consumption |
: 180 gr/HP.hour |
| Lubricating Oil Capacity |
: 2.4 Lt |
| Cooling System |
: Hopper |
| Lubricating Specification |
: SAE 30,SAE 40,20W50,D10W30 |
| Dry Weight |
: 83 Kg |
| Fuel Tank Capacity |
: 9.5 Lt |
| Lamp | : – |
